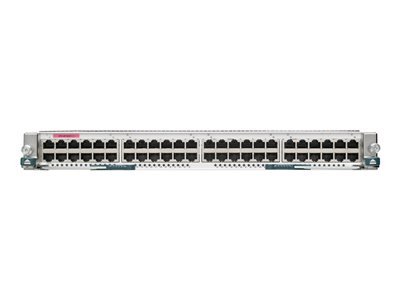

The Cisco Nexus 7000 Series 48-Port Gigabit Ethernet Modules with XL Option are highly scalable modules designed for performance-driven, mission-critical Ethernet networks. The modules use the M1-XL forwarding engine, providing a throughput of up to 60 million packets per second (Mpps) and a large Forwarding Information Base (FIB) - making them ideal for deployment at an Internet exchange point (IXP), a service provider, or a large enterprise.
- Product Description Cisco Nexus 7000 M1-Series Module with XL Option - switch - 48 ports - plug-in module
- Device Type Switch - 48 ports - L3
- Enclosure Type Plug-in module
- Subtype Gigabit Ethernet
- Ports 48 x 10/100/1000
- Performance Switching fabric bandwidth: 46 Gbps ¦ Unicast forwarding (IPv4): 60 Mpps ¦ Unicast forwarding (IPv6): 30 Mpps
- Capacity IPv4 routes: up to 1000000 ¦ IPv6 routes: up to 350000 ¦ NetFlow entries: 512000 ¦ ACL: 128000 ¦ Policies: 16000 ¦ Virtual interfaces (VLANs): 16384
- MAC Address Table Size 128K entries
- Jumbo Frame Support 9216 bytes
- Features MPLS support, VLAN support, IPv6 support, ACL support, QoS, DWRR, SRR, NetFlow, VRF, TCG
- Compliant Standards IEEE 802.1ae
- Dimensions (WxDxH) 15.3 in x 21.9 in x 1.7 in
- Weight 14.11 lbs
- Manufacturer Warranty 1-year warranty
|
