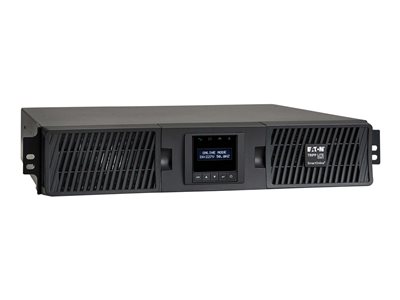

Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U
Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U
- Price:
$1,798.99
- Availability:
- Mfr #: SUINT2200LCD2U
- UNSPSC #: 26111701
- Item #: 003641069
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | 3 x power cable - external ¦ USB cable - external ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Built-in cooling fan, audible alarm, LCD display, voltage monitoring, internal bypass, LED indicators, noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, Remote Emergency Power Off (REPO), hot-swappable batteries, Energy-Saving Outlets |
| Compliant Standards | CSA, SASO, UL 1778, FCC Part 15, EAC, IEC 62040-2:2006, IEC 62040-1:2008 |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 17.2 in |
| Depth | 19.5 in |
| Height | 3.5 in |
| Weight | 50.93 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 22.2 in |
| Shipping Depth | 27.6 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 59.97 lbs |
Software / System Requirements
| Software Included | TrippLite PowerAlert |
Compatibility Information
| Designed For | P/N: RBC48S |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
| Service & Support Details | Limited warranty - 2 years |
Battery
| Type | Expandable |
| Voltage Provided | 48 V |
| Run Time (Up To) | 4.3 min at full load ¦ 11.7 min at half load |
| Recharge Time | 3 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 50 dB |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C19 (UPS and surge) |
| Output Voltage | AC 200/208/220/230/240 V ± 2% - 50/60 Hz |
| Max Electric Current | 10.94 A |
| Power Capacity | 2000 Watt / 2200 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 936 Joules |
| Efficiency | 95% |
| Power Factor (PF) | 0.9 |
Expansion / Connectivity
| Interfaces | 1 x EPO (emergency power off) ¦ 1 x USB ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
