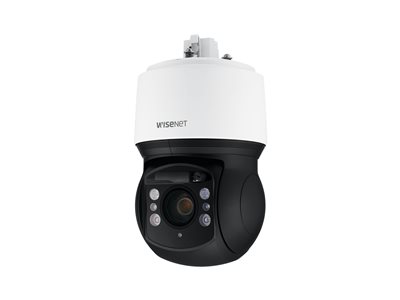

2MP IR, WIPER PTZ
2MP IR, WIPER PTZ
- Price:
$3,015.99
- Availability:
- Mfr #: XNP-6400RW
- UNSPSC #: 43222631
- Item #: 008627746
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, PIM-SM, LLDP |
Miscellaneous
| Compliant Standards | FCC, cULus, IK10, IP66, EAC, IEEE 802.1x |
| Color | Black, white |
Lens Construction
| Type | Motorized zoom |
| Optical Zoom | 40 x |
| Focal Length | 4.25 mm - 170 mm |
| Lens Iris | F/1.6-4.95 auto iris (DC) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 10 ft |
| Horizontal Field of View (degree) | 1.88 - 65.66 |
| Vertical Field of View (degree) | 1.09 - 39.4 |
Tilting
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 350 |
Image Sensor
| Type | 2 MP CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 7.3 in |
| Depth | 7.3 in |
| Height | 12.6 in |
| Weight | 11.9 lbs |
Camera
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.05 lux - color - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 656 ft |
| Video Capture | 1920 x 1080 @ 60 fps |
| RAM | 4 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), white balance, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Camera Tampering Detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Object Tracking, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, fog detection, motion detection, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, Gain Control |
Panning
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 500 |
Expansion / Connectivity
| Ports | LAN - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
Power
| Power Requirements | High PoE Class 6 |
| Power Device | 42 Watt |
